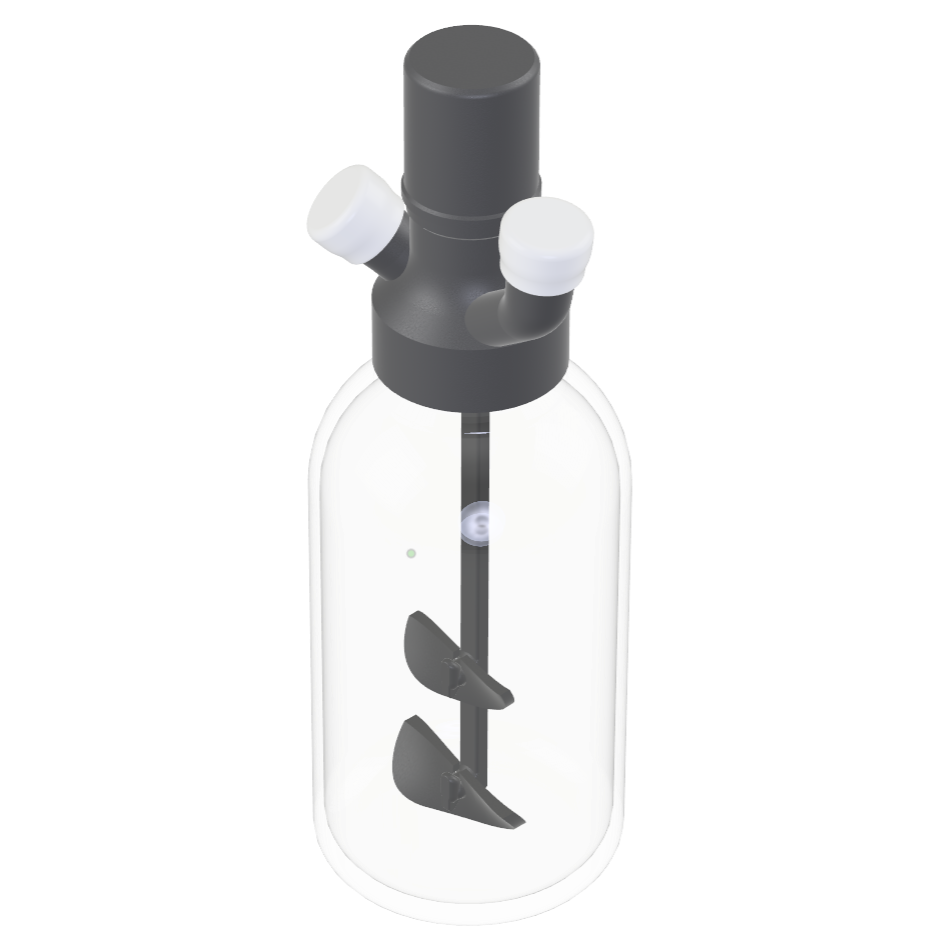

MOStirrer for GL45 Bottles:
Convert any GL45 bottles to an overhead-stirrer-equipped three neck reactor

Demonstration Video

• PPS-GF material comprised cap, main body, rod, and blades

  • Three FFKM O-rings included: Compatible with most of organic solvents

    • Custom designed FFKM O-ring is used to hold a rod

      • 10mm diameter, glass or PPS rod

    • 25mm ID*2.5mm CS: to seal the cap

    • 35mm ID*3.5mm CS: to seal the glass bottle

      • remove the original POURING RINGS

• 3D printed PPS parts, Nonbreakable at ambient Temp

  1. A single body piece that includes permanently attached two 14/20 side arms

     • One for refulxing condensor

     • One for vent/adding/sampling

  2. Can be oven dried at 110C

  3. Further customizable for any specific requirements

• For bottles with GL45 glass threads

• Powerful enough for agitation

  • 400 g of 100% Corn syrup in 500 mL GL45 bottle

• PPS-GF Mag-Rod Holder

  • 3D printed PPS-GF part

  • Compatible with most of organic solvents

  • Not recommened for Oven drying (Keep at <80C)

    • demagnetization may occur at >80C)

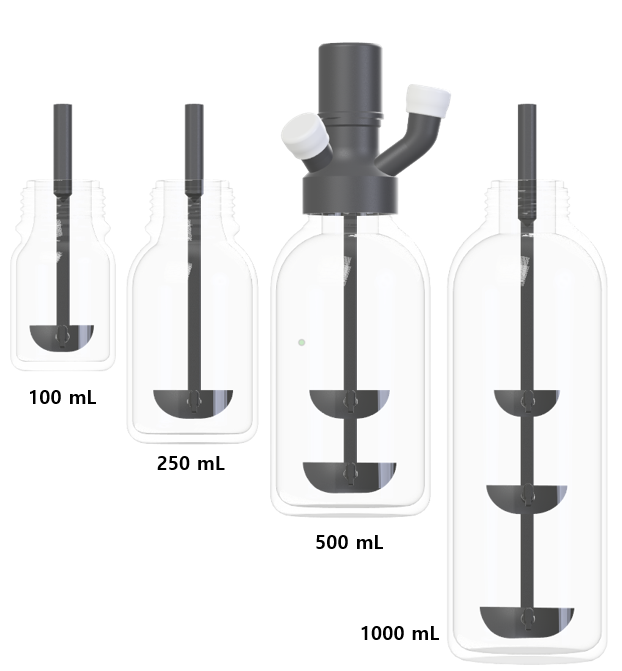

• Four PPS-GF Rods are included for typical 100mL, 250mL, 500mL, and 1000mL Bottles

  • Heat Resistance Up to 240℃

  • Solvent and Chemical Resistance

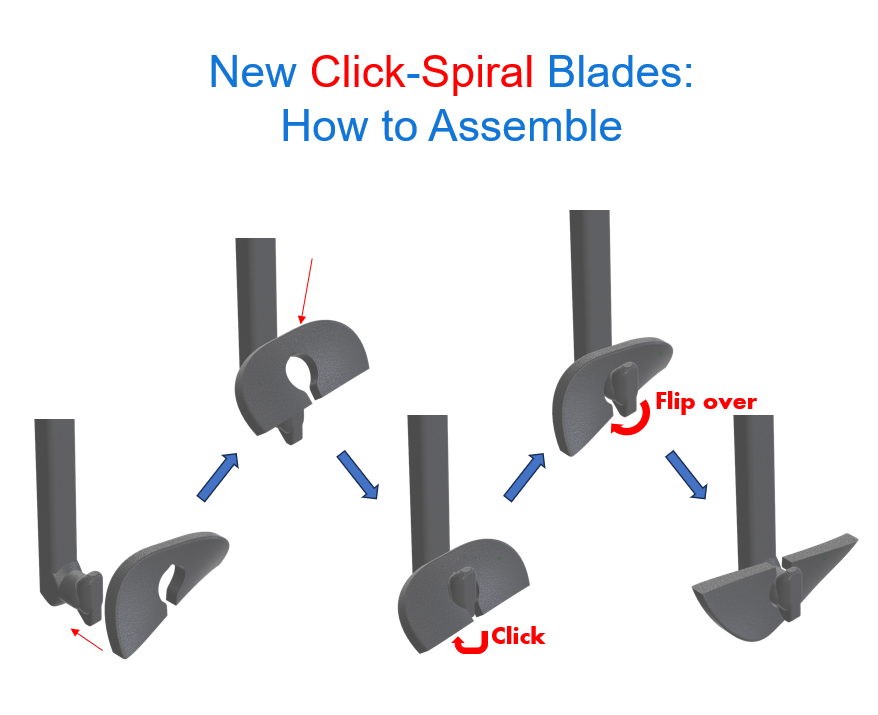

  • Three Click-Spiral Blades are included to cover all combination as shown in the picture

  • 10mm glass rods can also be used

    • glass rod is not included

• MOSController for flasks (MOS-SC-03) is required

  • Up to 500 rpm speed at 12V

  • Pleae contact us for higher speed version.

• Power Supply for MOSControllers (MOS-PS-02) is required

How to assmble

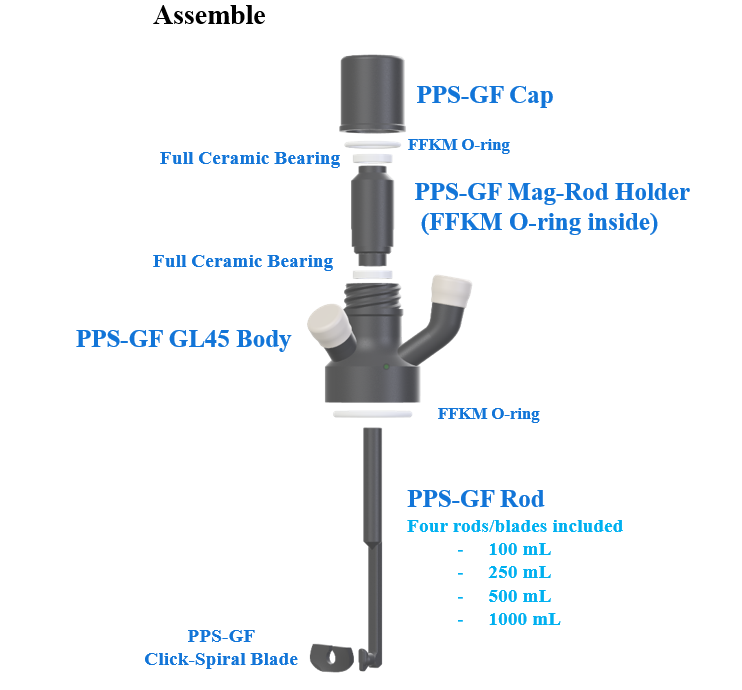

• Please assemble the product according to the sequence shown in the “Assemble” image.

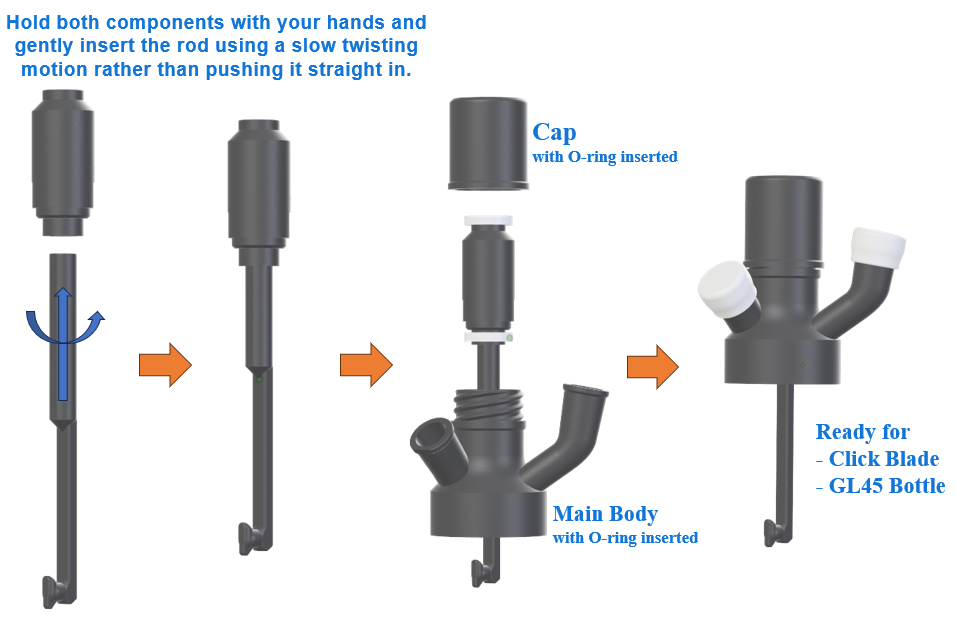

  While most parts slide into place easily, please use a specific technique for connecting the rod to the PPS-GF Mag-Rod holder. Hold both components with your hands and gently insert the rod using a slow twisting motion rather than pushing it straight in.

• Also, remember to wear protective gloves during assembly.
